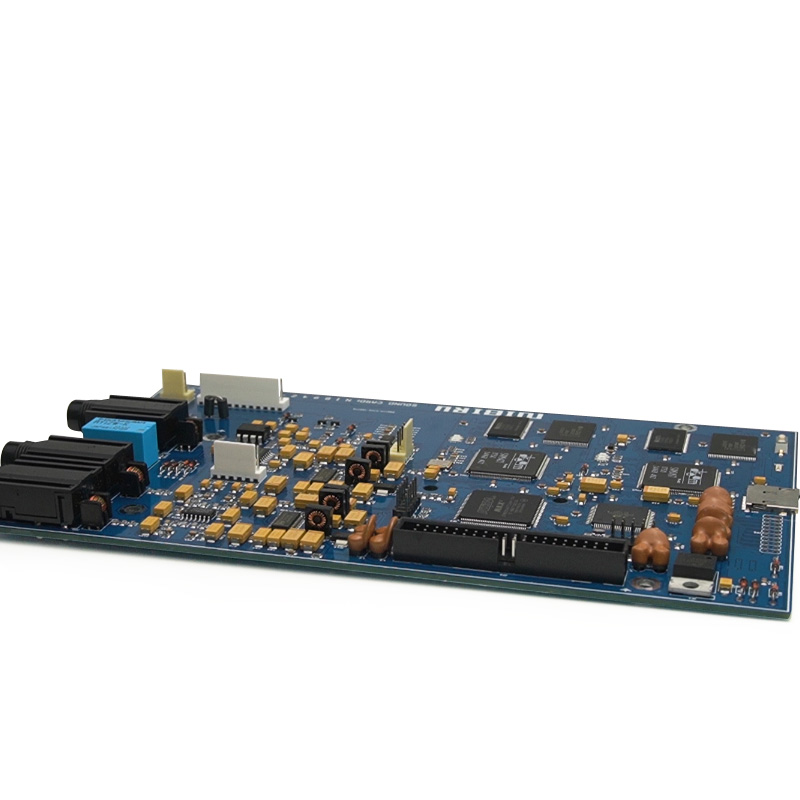

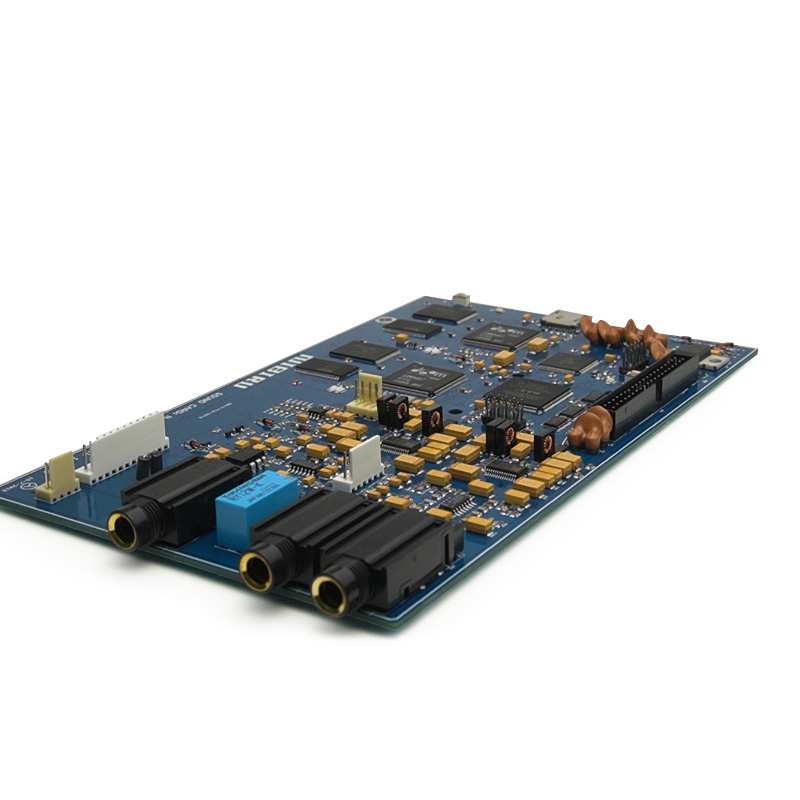

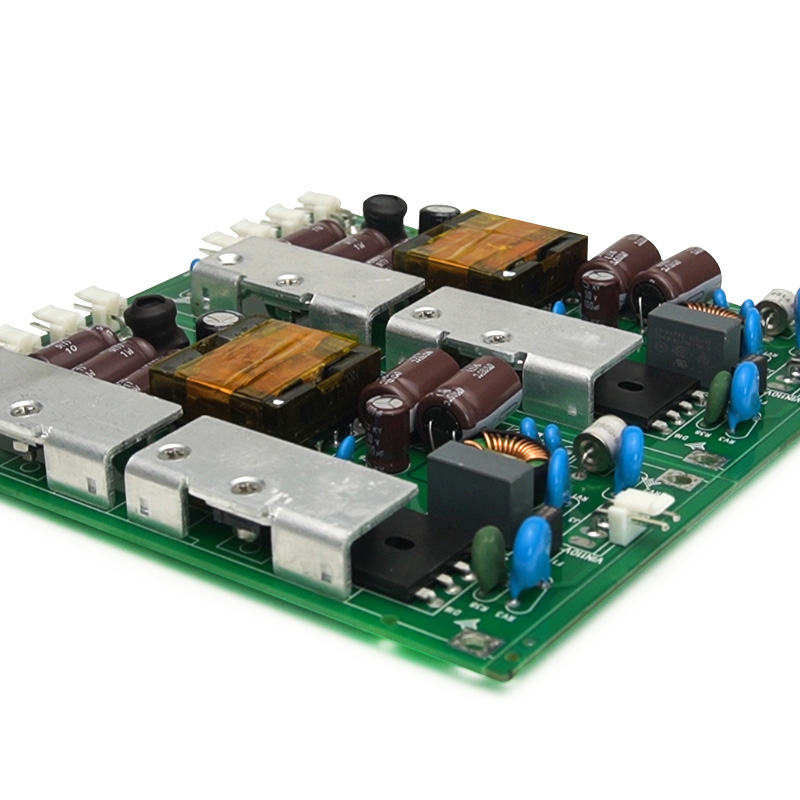

Oxygen Generator PCBA

Unixplore Electronics specialitas in una-statur fabricare turnkey et supplere pro alta qualitate oxygeni generantis PCBA in Sinis ab anno 2008 cum qualitatibus certificationis ISO9001:2015 et PCB contionis vexillum IPC-610E.

Mitte Inquisitionem

depictio producti

Quid est oxygeni generans PCBA moderatoris unitatis?

Ut opificem professionalem, Unixplore Electronics princeps qualitatem oxygeni generantis PCBA tibi praebere vellet, una cum optima post-sale servitio ac partus opportune.

Progressio medicinae generantis PCBA involvit consilium, electio componentis, logicam tabulam circuitionis moderans.

Typis ambitus tabula designanda est, ut certae designationis regulas et signa sequantur. Eodem tempore, ipsa applicatio machinae generantis oxygeni considerari debet, ut parametri et effectus sensoriis oxygenii, sensoriis et aliis componentibus fluunt, necnon interfacies operativae ac leo switch, terror, etc.

Requirit technologiam electronicam professionalem scientiam generantis et oxygenii, et multoties probanda et verificanda est ut ratio circuli tabulae et perficiendi oxygenii generantis signis medicis occurrere possit.

Unixplore unum-stop turnkey ministerium praebet pro EMS project. Sentire liberum nos contactum ad tabulas tuas aedificandas, citare possumus in 24 horis postquam tuum accipimusGerber fileetBOM list!

Oxygen Generator PCBA Manufacture

* PCB lima ac partes album supplere client
* blank PCB fecit, componentes a nobis acquisivit
* PCB fabricandi cum partibus plene convenerunt
* C% Exertus Bene ante naviculas Function
* RoHS facilis, Processus fabricandi libero plumbo
* Velox traditio, cum sarcina independens ESD
* Una sistenda opera electronic fabricandi ad PCB designa, PCB layout, PCB fabricatio, procuratio partium, PCB SMT ac SUMMERGO conventus, IC programmatio, munus test, sarcina ac traditio.

Unixplore PCB & PCB Conventus Capability

Parameter	Facultas
Stratis	1-40 layers
Conventus Type	Per-Hole (THT), Superficies Mount (SMT), Mixtum (THT+SMT)
Minimum Component Size	0201(0105 Metric)
Maximum Component Location	2.0 in x 2.0 in x 0.4 in (50 mm x 50 mm x 10 mm)
Pars Package Genera	BGA, FBGA, QFN, QFP, VQFN, SOIC, SOP, SSOP, TSSOP, PLCC, SUMMERGO, SIP, etc.
Minimum Pad Pitch	0.5 mm (20 mil) pro QFP, QFN, 0.8 mm (32 mil) pro BGA
Minimum Vestigium Latitudo	0.10 mm (4 mil)
Minimum Vestigium Clearance	0.10 mm (4 mil)
Minimum EXERCITATIO Location	0.15 mm (6 mil)
Maximum Board Location	18 in x 24 in (457 mm x 610 mm)
Tabula Crassitudo	0.0078 in (0.2 mm) ad 0.236 in (6 mm)
Materia tabula	CEM-3, FR-2, FR-4, High-Tg, HDI, Aluminium, High Frequency, FPC, Rigid-flex, Rogers, etc.
Superficiem Conclusio	OSP, HASL, Mico Aurum, Enig, Aurum Digitus, etc.
Miles crustulum Type	Plumbum vel plumbum, Free
Crassitudo aeris	0.5OZ – 5 OZ
Processus Conventus	Reflow Soldering, Undo Soldering, Manual Soldering
Inspectionis Methodi	Automated Optical Inspectionis (AOI), X radius Visual Inspectionis
Testis Methodi in-Domus	Expertus functiones, Proba Test, Senex Test, Maximum et Minimum Temperature Test
Tunc turnaround	Sampling: 24 hours to 7 days, Mass Run: 10 - 30 days
PCB Conventus Signa	ISO9001:2015; ROHS, UL 94V0, IPC-610E classis II

Unixplore Value-added EMS Service

● IC prae-programma programmandi officium cum tabella in forma HEX, ELF et BIN.
● Oxygen Generator PCBA Function test fixture nativus secundum requisita test clientium
Box building service including plastic & metal case form and part production
Conformal efficiens inter selectivam ATRAMENTUM efficiens, epoxy resinae potting
Filum phaleras et dilabi conventus
● Productum conventum inclusis arca, screen, membrana switch, labella et nativus lobortis vel cistae grossae sarcina.
Variae tertiae factionis probationes pro PCBA praesto sunt ad petitionem
Product Certification auxilium
